精迪华普注塑机 |
|
精迪华普注塑机 |
可选配伺服，节能达30%–80%
机器型号 Machine moder |
----- | DH–3000KN |
螺杆直径 Screw diametor |
mm | ø50 - ø105 |
螺杆转速 Screw speed |
r/min | 0-320 |
理论注射容积 Theoretical shot volume |
cm³ | 550 - 3895 |
PS射出重量 Shot weight |
g | 500 - 3500 |
注射速率 Inection pate(ps) |
g/s | 125 - 292 |
螺杆行程 Screw stroke |
mm | 280 - 450 |
注射力 Injection pressure |
kg/cm² | 1330 - 730 |
锁模方式 Claming Model |
------ | 油缸 |
锁模力 Claming porce |
kn | 1500-5000 |
开模行程 maxmould plate stroke |
mm | 280 |
最大模厚 Max.Mold helght |
mm | 500 |
模板尺寸 Mould plate size |
mm | 1000*660 |
拉杆内间距 Space Between Tie Bars |
mm | 730*390 |
滑台尺寸 Silde Platen Size |
mm | 700*600 |
顶出高度 Top height |
mm | 140 |
加热功率 Heating power |
KW | 10-12.5 |
伺服功率 Motor power |
KW | 30 |
机器重量 Machine weight |
T | 8.5-10 |

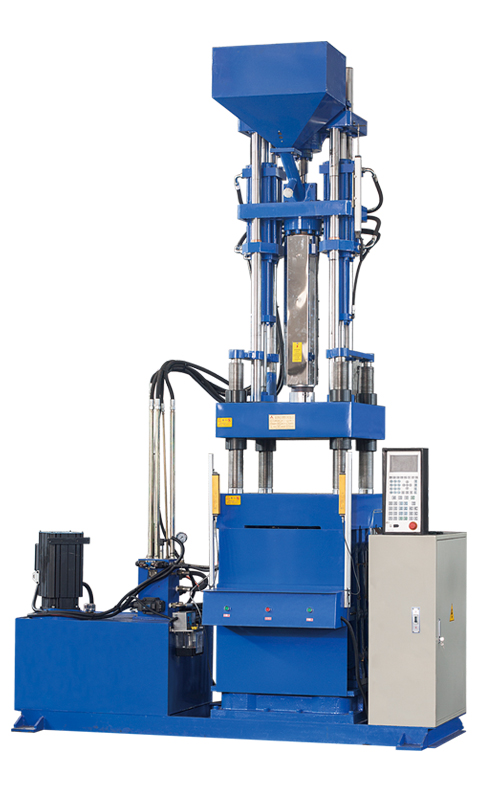

机器型号 Machine moder |
----- | L–800 |
螺杆直径 Screw diametor |
mm | ø50 - ø105 |
螺杆转速 Screw speed |
r/min | 0-320 |
理论注射容积 Theoretical shot volume |
cm³ | 550 - 3895 |
PS射出重量 Shot weight |
g | 500 - 3500 |
注射速率 Inection pate(ps) |
g/s | 125 - 292 |
螺杆行程 Screw stroke |
mm | 280 - 450 |
注射力 Injection pressure |
kg/cm² | 1330 - 730 |
锁模方式 Claming Model |
------ | 曲肘 |
锁模力 Claming porce |
kn | 2000 |
开模行程 maxmould plate stroke |
mm | 360 |
最大模厚 Max.Mold helght |
mm | 500 |
模板尺寸 Mould plate size |
mm | 825*750 |
拉杆内间距 Space Between Tie Bars |
mm | 560*480 |
顶出高度 Top height |
mm | 100 |
加热功率 Heating power |
KW | 10-12.5 |
伺服功率 Motor power |
KW | 23 |
机器重量 Machine weight |
T | 3.8-4.8 |
